Hyundai Santa Cruz: Convenient Features / Manual Climate Control System
.gif)

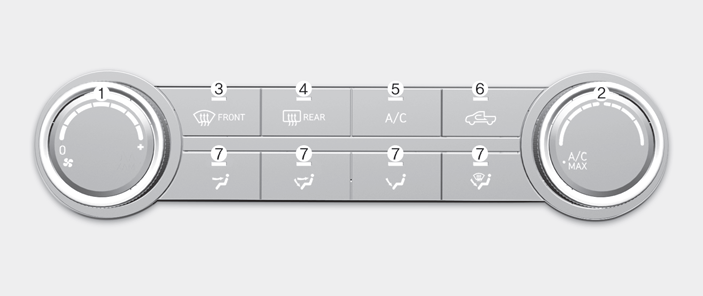

1. Fan speed control knob
2. Temperature control knob
3. Front windshield defroster button
4. Rear window defroster button
5. A/C (air conditioning) button
6. Air intake control button
7. Mode selection button
