Hyundai Santa Cruz: Gauges and Meters / Odometer
.jpg)

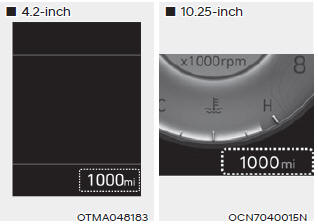

The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance is required.
Outside temperature gauge
The outside ambient temperature is
displayed in the lower portion of the LCD
cluster display. The temperature will
read in Fahrenheit or Celsius depending
on the units selected in the User Settin ...
Distance to empty
The distance to empty is the
estimated mileage the vehicle can be
driven with the remaining fuel.
If the estimated distance is below 1 mi.
(1 km), the trip computer will display
“---” ...
