Hyundai Santa Cruz: Interior Trim / Patition Upper Trim Assembly

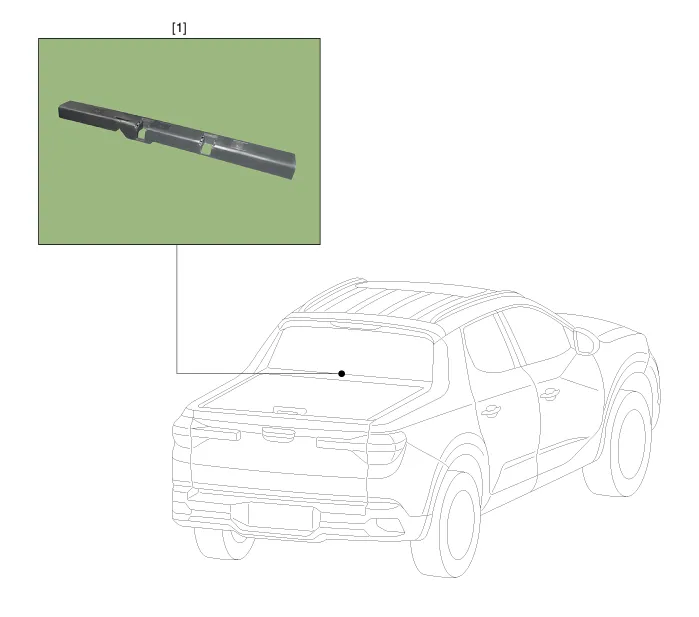

- Components Location

1. Patition upper trim


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

1.Remove the rear seat assembly.(Refer to Rear Seat - "Rear Seat Assembly")

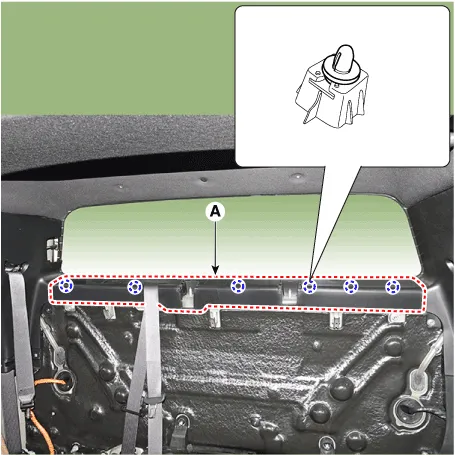

2.Using a screwdriver or remover, remove the patition upper trim (A).

3.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).

    Rear Pillar Trim
    - Component Location 1. Rear pillar trim (Lower)2. Rear pillar trim (Upper) - Replacement     • When removing with a flat-tip screwdriver or remover, wrap protective ta ...

    Luggage Floor Center Tray
    - Replacement     • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent h ...
