Hyundai Santa Cruz: Vehicle Information, Consumer Information and Reporting Safety Defects / Refrigerant Label

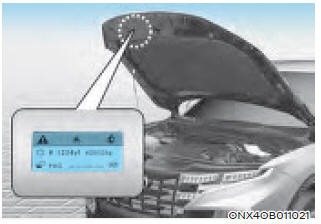

The refrigerant label provides information such as refrigerant type and amount. (R-1234yf)
