Hyundai Santa Cruz: Vehicle Information, Consumer Information and Reporting Safety Defects / Engine Number

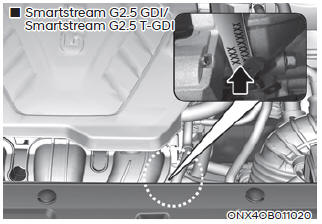

The engine number is stamped on the engine block as shown in the drawing.

    Tire Specification and Pressure Label
    The tires supplied on your new vehicle are chosen to provide the best performance for normal driving. The tire label located on the driver’s side center pillar gives the tire pressures recomm ...

    Refrigerant Label
    The refrigerant label provides information such as refrigerant type and amount. (R-1234yf) ...
