Hyundai Santa Cruz: Air Conditioning System / Refrigerant Line

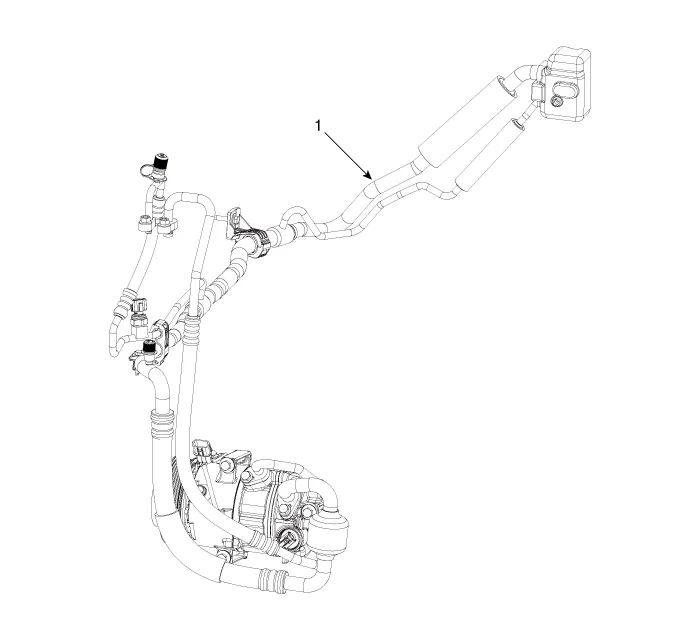

- Components

1. Suction & Liquid Pipe Assembly


- Replacement

1.If a compressor is available, the air conditioner is operated for a few minutes in the engine idle state and then the engine is stopped.

2.Disconnect the negative (-) battery terminal.

3.Recover the refrigerant with a recovery/charging station.(Refer to Air conditioning System - "Repair procedures")

4.Remove the engine cover.(Refer to Engine Mechanical System - "Engine Cover")

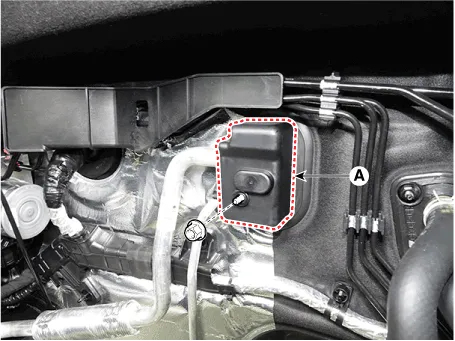

5.Loosen the mounting nut and separate the expansion valve cover (A).

Tightening torque : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

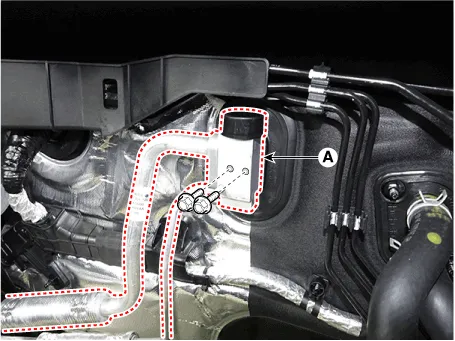

6.Loosen the mounting bolts and separate the expansion valve (A) fron evaporator core.

Tightening torque : 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

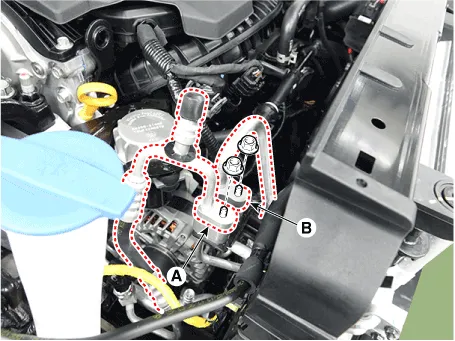

7.Loosen the mounting nuts and separate the suction line (A), discharge line (B).

Tightening torque : 21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb-ft)

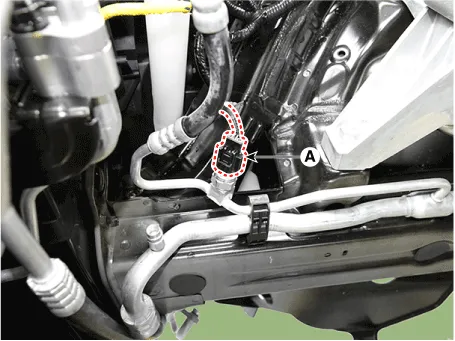

8.Disconnect the APT sensor connector (A).

9.Remove the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")

10.Remove the engine mounting braket.(Refer to Engine Mechanical System - "Engine Mounting")

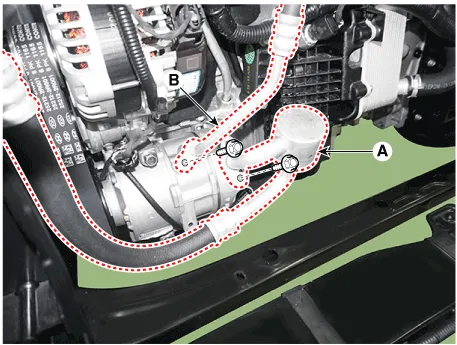

11.Separate the compressor suction line (A) and discharge line (B) connection bolts and disconnect the line.

Tightening torque : 21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb-ft)



• Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.(Refer to General Information - "Lift and Support Points")

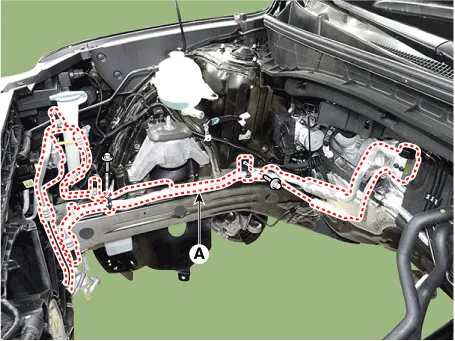

12.Loosen the mounting bolt and remove the Front suction & Liquid pipe assembly (A).

Tightening torque : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

13.Install in the reverse order of removal.



• Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.

• Tighten the bolt or nut joint to the specified torque.

• Using a gas leak detector, check for refrigerant leakage.

• Evacuate air in the refrigeration system and charge system with refrigerant.

Capacity : R-1234yf : 600 ± 25 g (21.2 ± 0.88 oz.)
