Hyundai Santa Cruz: Front Door / Repair procedures

- Adjustment Glass Adjustment



• Check the glass run channel for damage or deterioration, and replace it if necessary.

1.Remove the front door trim.(Refer to Front Door - "Front Door Trim")

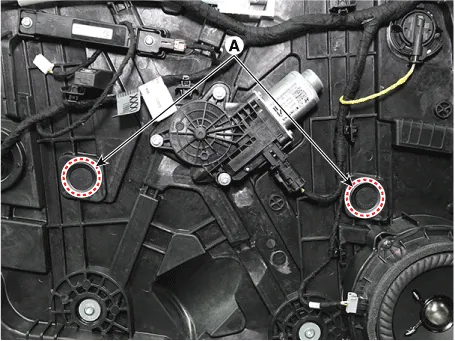

2.Remove the plug hole(A).

3.Lower the glass by operating the power window switch until the glass mounting bolt is exposed in the plug hole.



• Be careful not to drop the glass and/or scratch the glass surface.

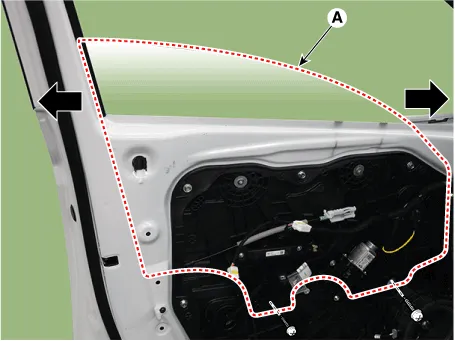

4.After loosening the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.

5.Check the glass for normal operation.

Door Striker Adjustment

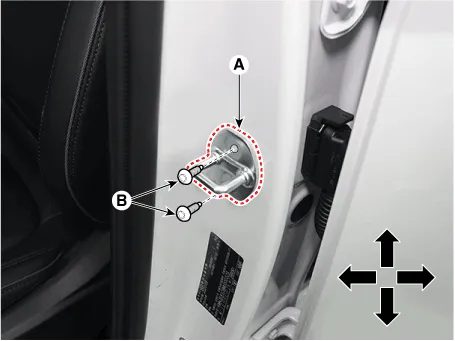

1.After loosening the mounting screw, adjust the striker (A) by moving it forward and backward or from side to side and then tighten the bolts (B).

Tightening torque : (B) : 16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

2.Tap on the striker with a plastic hammer to adjust the striker. The striker will not move much, but will give some adjustment.

3.Hold the outer handle out, and push the door against the body to be sure the striker allows a flush fit. If the door latches properly, tighten the screws and recheck.

Door Position Adjustment

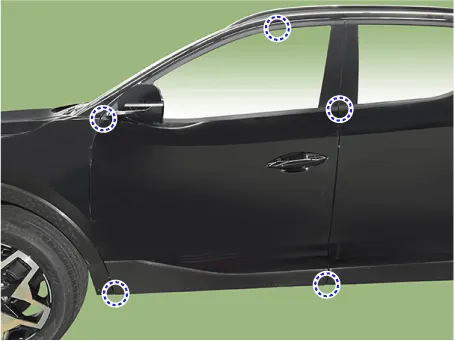

1.Check that the door and body edges are parallel.

2.Place the vehicle on a level surface before adjusting the doors.

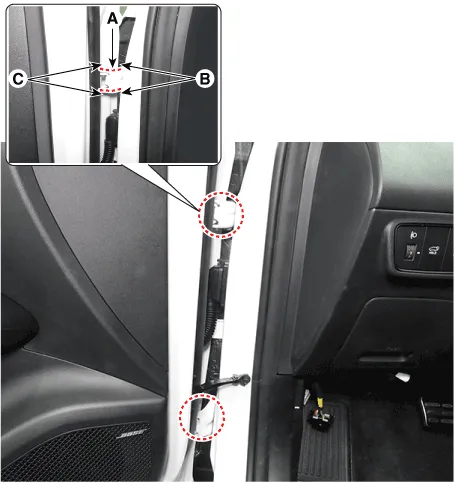

3.Adjust the hinges (A) :- Loosen the door mounting bolts slightly, and move the door in or out until it flush with the body.- Loosen the hinge mounting bolts slightly, and move the door backward or forward, up or down as necessary.- Place a shop towel on the jack to prevent damage to the door when adjusting the door.

Tightening torque :(B) : 23.5 - 31.4 N.m (2.4 - 3.2 kgf.m, 17.4 - 23.1 lb-ft)(C) : 9.8 - 19.6 N.m (1.0 - 2.0 kgf.m, 7.2 - 14.5 lb-ft)

4.Grease the pivot portions of the hinges indicated.

5.Check for water leaks.

    Components and Components Location
    - Components 1. Front door trim2. Front door belt inside weatherstrip3. Front door quadrant inner cover4. Front door module5. Front door belt outside weatherstrip6. Front door frame molding7. Fr ...

    Front Door Trim
    - Components Location 1. Front door trim - Replacement     • When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent ...
