Hyundai Santa Cruz: Auto Lighting Control System / Schematic Diagrams

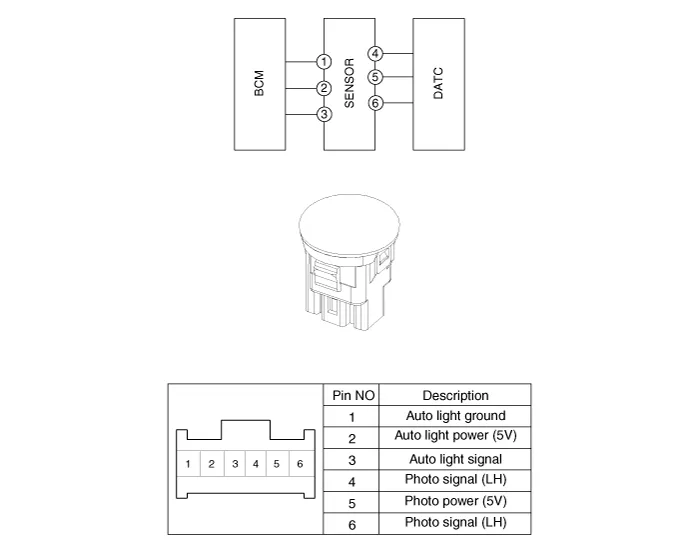

- Circuit Diagram

    Specifications
    - Specifications ItemsSpecifications Rated voltage5V LoadMax. 1mA (When head lamp lighting) Illuminations (LUX)1001.41 ± 0.31V 2002.60 ± 0.57V ...

    Auto Light Sensor
    - Inspection Check if the auto light control operates like a timing chart shown below.Tail lamp output and head lamp (Low) output is controlled based on the auto light sensor's input (illuminat ...
