Setting features

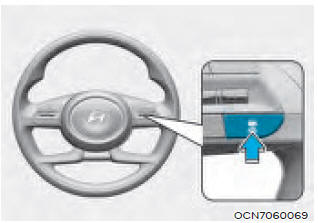

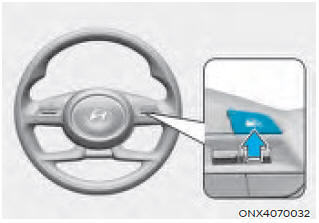

Turning on Smart Cruise Control
Information
Setting vehicle distance
Each time the button is pressed, the vehicle distance changes as follows:
Information

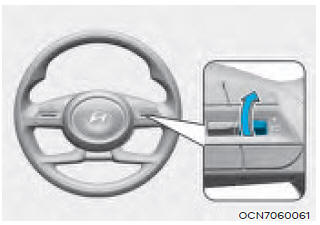

Increasing set speed
WARNING
Check the driving condition before using the + switch. Driving speed may sharply increase when you push up and hold the + switch.

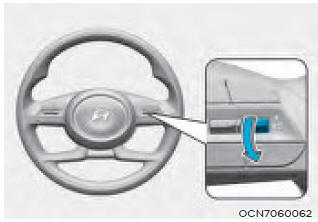

Decreasing set speed

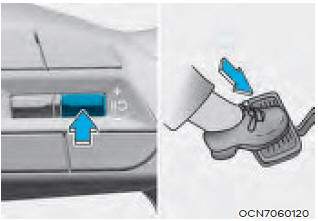

Temporarily canceling Smart Cruise Control
Press the switch or depress the
brake pedal to temporarily cancel Smart
Cruise Control.

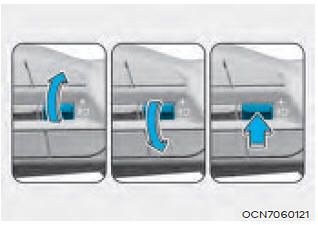

Resuming Smart Cruise Control
To resume Smart Cruise Control after the
function was canceled, push the +, - or
switch.
If you push the + switch up or - switch down, vehicle speed will be set to the current speed on the cluster.
If you push the switch, vehicle
speed
will resume to the preset speed.
WARNING
Check the driving condition before
using the switch. Driving
speed
may sharply increase or decrease when
you press the
switch.

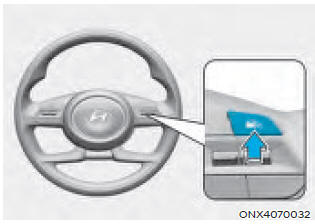

Turning off Smart Cruise Control
Press the Driving Assist ()
button to
turn Smart Cruise Control off.
Information
If your vehicle is equipped with Manual Speed Limit Assist, press and hold the Driving Assist button to turn off Smart Cruise Control. However, Manual Speed Limit Assist will turn on.

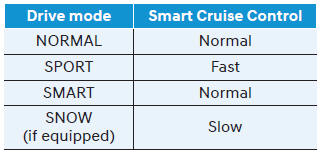

Based on Drive Mode
Smart Cruise Control will change acceleration based on the drive mode selected from Drive Mode Integrated Control system. Refer to the following chart.
Information

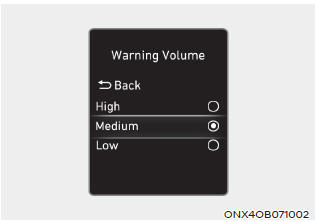

Warning Volume
With the engine on, select 'Driver Assistance>Warning Volume' from the Settings menu to change the Warning Volume to ‘High’, ‘Medium’ or ‘Low’ for Smart Cruise Control.
If you change the Warning Volume, the Warning Volume of other Driver Assistance systems may change.
Information
If the engine is restarted, Warning Volume will maintain the last setting.
