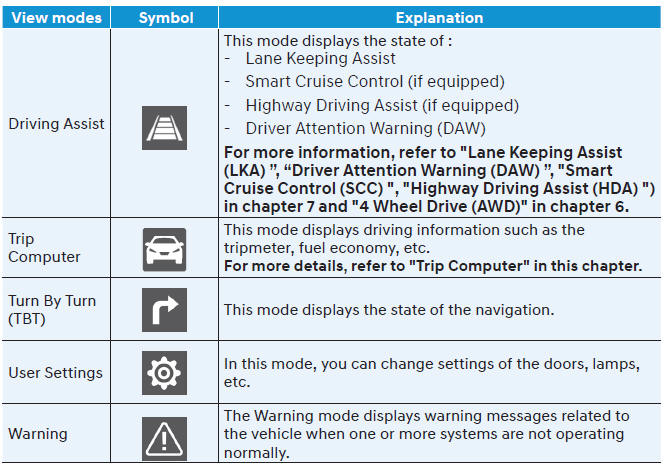

Hyundai Santa Cruz: LCD Display / View Modes

Trip computer mode

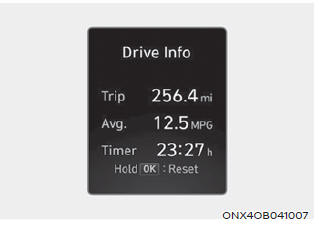

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

Turn By Turn (TBT) mode

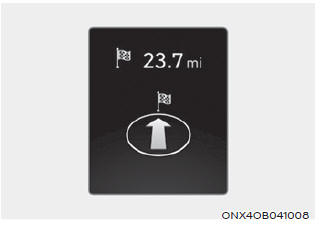

Turn-by-turn navigation, distance/time to destination information is displayed when Turn by Turn view is selected.

Driving Assist mode

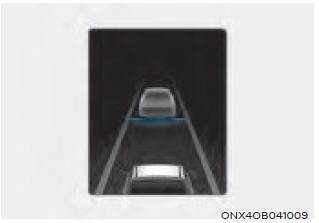

LKA/SCC/HDA

This mode displays the state of Lane Keeping Assist, Smart Cruise Control and Highway Driving Assist.

Driver Attention Warning

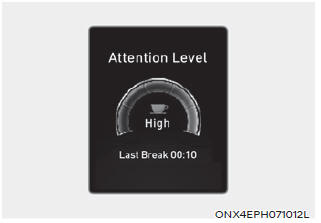

This mode displays the state of Driver Attention Warning.

Driving force distribution (AWD)

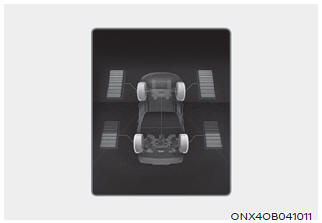

This mode displays information related to AWD driving force.

If the vehicle is in AWD lock state, this mode is not displayed.

Master warning group

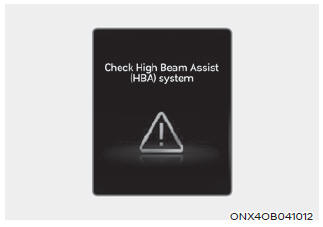

This warning light informs the driver the following situations.

- Forward Collision-Avoidance Assist malfunction
- Forward Collision-Avoidance Assist radar blocked
- Blind-Spot Collision Warning malfunction (if equipped)
- Blind-Spot Collision Warning radar blocked (if equipped)
- LED headlamp malfunction (if equipped)
- High Beam Assist malfunction (if equipped)
- Smart Cruise Control malfunction (if equipped)
- Smart Cruise Control radar blocked (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction

The Master Warning Light illuminates if one or more of the above warning situations occur.

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display.

If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

Tire Pressure

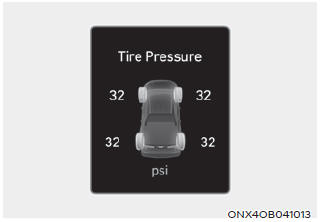

This mode displays information related to Tire Pressure.

    LCD Display
    LCD Display Control The LCD display modes can be changed by using the control buttons. Information When the infotainment system is applied, only the User’s Setting mode on the infotainment syste ...

    User Settings Mode
    In this mode, you can change the settings of the instrument cluster, doors, lamps, etc. 1. Driver Assistance 2. Cluster 3. Lights 4. Door 5. Convenience 6. Units Quick guide (Help) This mode provid ...
