Hyundai Santa Cruz: LCD Display / User Settings Mode

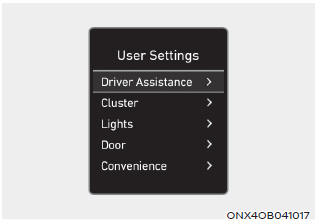

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

1. Driver Assistance
2. Cluster
3. Lights
4. Door
5. Convenience
6. Units

Quick guide (Help)

This mode provides quick guides for the systems in the User Settings mode. Select an item, press and hold the OK button.

Information

When the infotainment system is applied, only the User’s Setting mode on the infotainment system is supported but the User’s Setting mode on the instrument cluster is not supported.

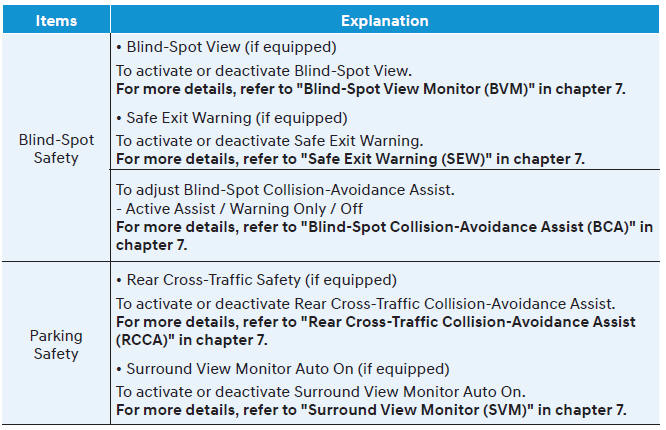

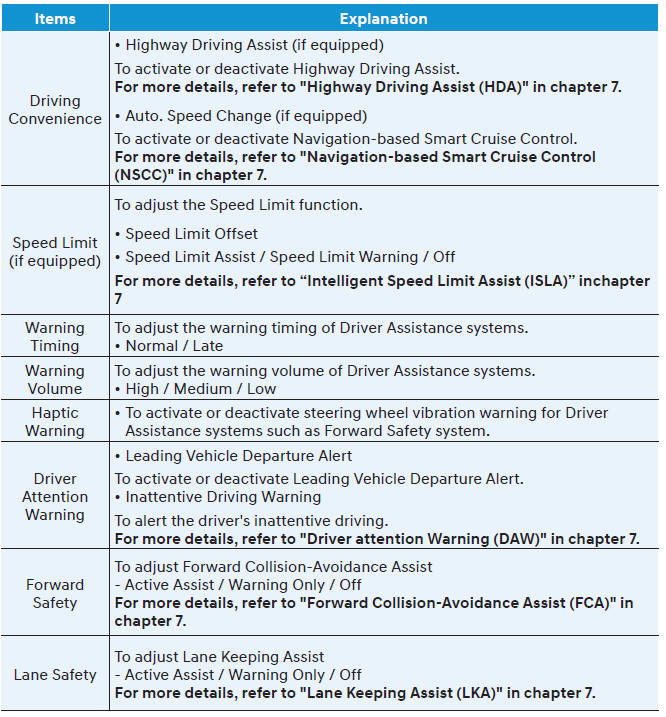

1. Driver Assistance

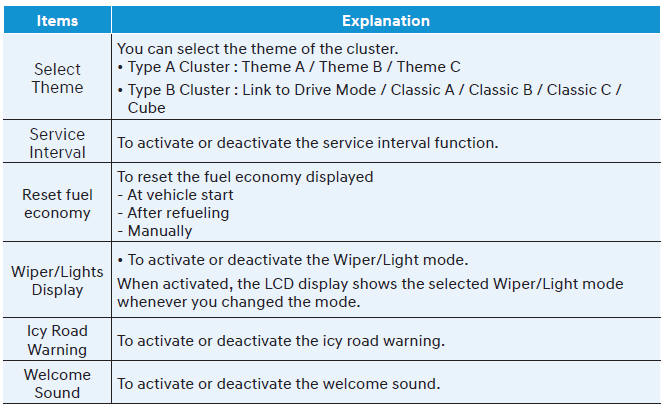

2. Cluster

Information

To use the service interval menu, consult an authorized HYUNDAI dealer. If the service interval is activated and the time and distance is adjusted, messages aredisplayed in the following situations each time the vehicle is turned on.

- Service in: Displayed to inform the driver the remaining mileage and days to service.
- Service required: Displayed when the mileage and days to service has been reached or passed.

Information

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.

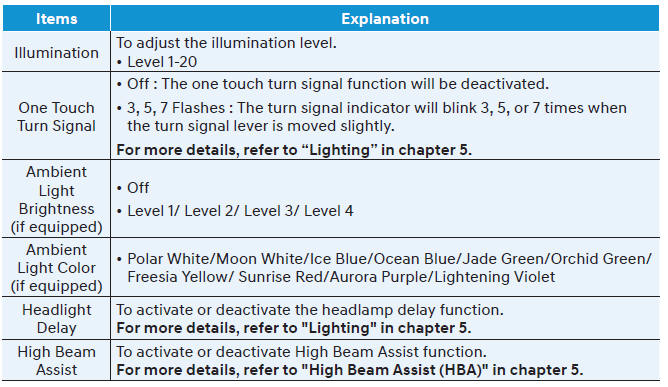

3. Lights

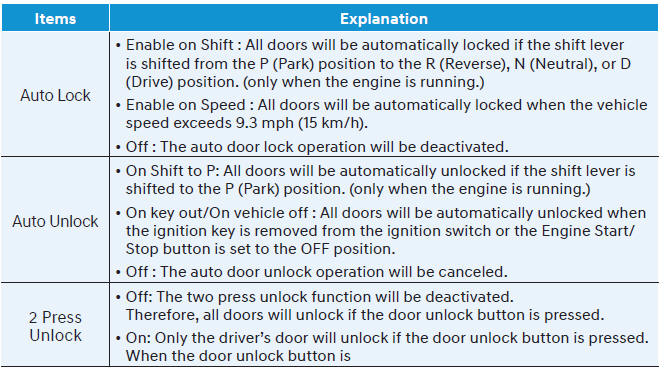

4. Door

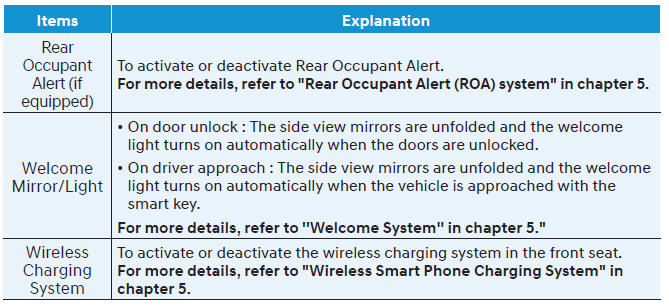

5. Convenience

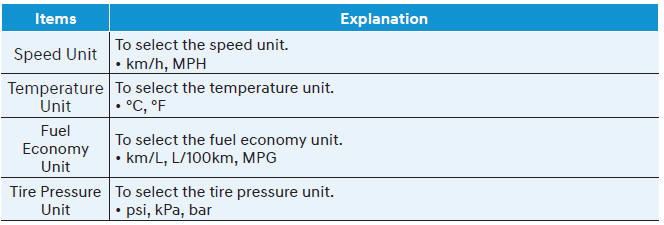

6. Units

Information

The information provided may differ depending on which functions are applicableto your vehicle.
