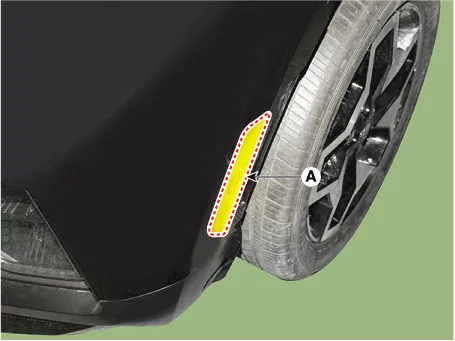

Hyundai Santa Cruz: Lighting System / Side Mark Lamp

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the front bumper assembly.(Refer to Body - "Front Bumper Assembly")

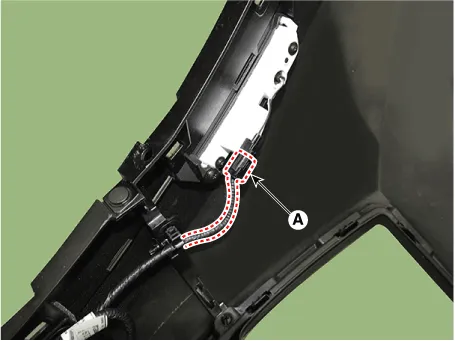

3.Disconnect the side mark lamp connector (A).

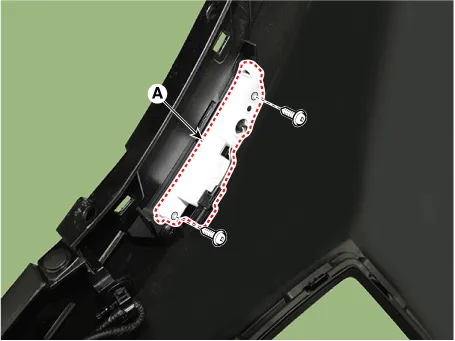

4.Loosen the mounting screws and remove the side mark lamp (A).

- Installation

1.Install the side mark lamp and connect the connector.

2.Install the front bumper assembly.

3.Connect the negative (-) battery terminal.

    Daytime Running Light (DRL)
    - Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the front bumper assembly.(Refer to Body - "Front Bumper Assembly") 3.Loosen the mounting screws and remove the daytime runnin ...

    Turn Signal Lamp
    - Removal Side repeater lamp     • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on glo ...
