Hyundai Santa Cruz: Sunroof / Sunroof Deflector

- Replacement

1.Open the glass fully.

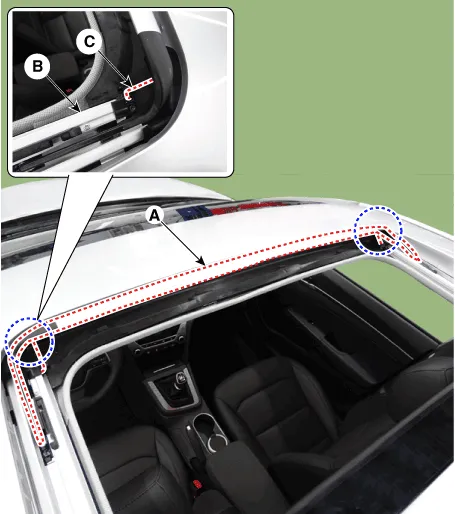

2.Remove the mounting pins (C), from the frame (B), and then remove the deflector (A).

3.To install, reverse the removal procedure.
