Hyundai Santa Cruz: Sunroof / Sunroof Glass

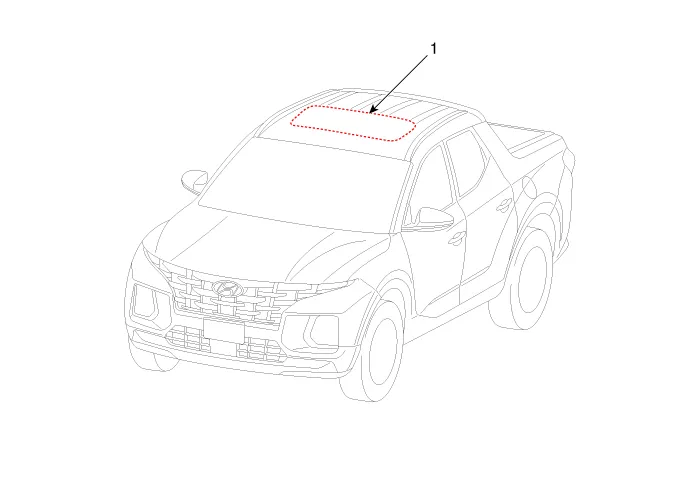

- Components Location

1. Sunroof glass


- Replacement



• Put on glove to protect your hands.

1.Close the sunroof glass completely by pressing the sunroof switch.

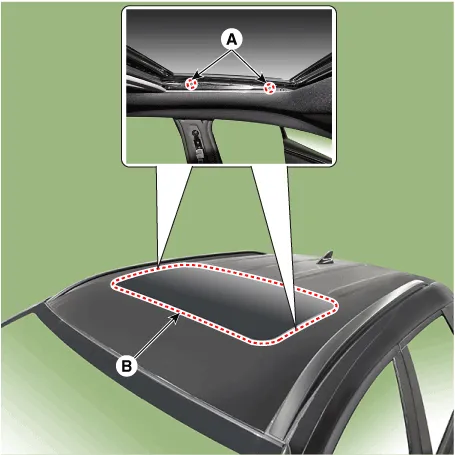

2.Loosen the mounting screws (A) and remove the sunroof glass (B).



• Do not damage the roof panel.

3.To install, reverse the removal procedure.



• After replacing the movable glass adjust the alignment if needed.

    Repair procedures
    - Adjustment Inspect Glass Alignment 1.Inspect the step height between the roof panel (A) and the glass weatherstrip (B) and then adjust it if necessary.Alignment adjustment Standard value [mm( ...

    Sunroof Deflector
    - Replacement 1.Open the glass fully. 2.Remove the mounting pins (C), from the frame (B), and then remove the deflector (A). 3.To install, reverse the removal procedure. ...
