Hyundai Santa Cruz: LCD Display Messages for Vehicles Equipped with Smart Key / Sunroof open indicator
.jpg)

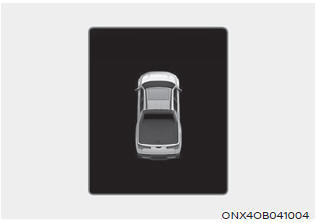

This warning is displayed if you turn off the engine when the sunroof is open.
Close the sunroof securely before leaving your vehicle.
Door, Hood, Tailgate open indicator
This warning is displayed if any door or
hood or tailgate is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that th ...
Low tire pressure
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated. ...
