Hyundai Santa Cruz: Exterior Features / Tailgate
Opening the tailgate
.jpg)
Make sure the vehicle is in P (Park) and set the parking brake.
Then do one of the following:

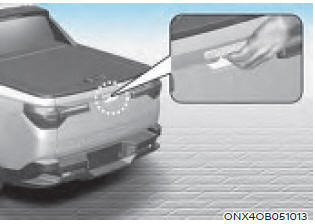

Open the tailgate by pressing the button on the tailgate handle or by pressing the button on the remote key or smart key.
The tailgate is damped and the support cables will hold the tailgate in the open position.
Hood
Opening the hood
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
hood. The hood should pop open
slightly.
3. Go to the front of the vehicle, raise the
hoo ...
Closing the tailgate
Close the tailgate by lifting upward and
ensure that both latches are properly
engaged. This can be checked by pulling
back on the gate.
WARNING
Always keep the tailgate completely
closed while t ...
