Hyundai Santa Cruz: Instrument Cluster / Transmission Shift Indicator

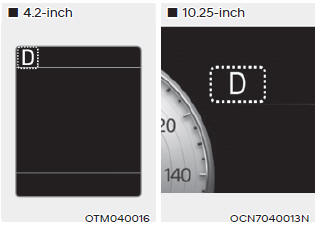

The Transmission Shift Indicator is shown in the upper corner of the LCD display to indicate the current gear or Park(P).
