Hyundai Santa Cruz: Gauges and Meters / Fuel economy (for 10.25-inch cluster)

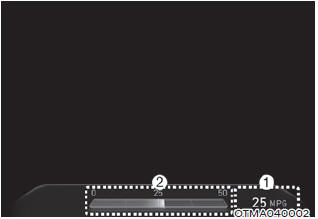

The average fuel economy (1) and instant fuel economy (2) is displayed at the bottom of the cluster.

Automatic reset

To automatically reset the average fuel economy, select between "After Ignition" or "After Refueling" from the Settings menu in the infotainment system screen.

    Distance to empty
    The distance to empty is the estimated mileage the vehicle can be driven with the remaining fuel. If the estimated distance is below 1 mi. (1 km), the trip computer will display “---” ...

    Transmission Shift Indicator
    The Transmission Shift Indicator is shown in the upper corner of the LCD display to indicate the current gear or Park(P). ...
