Hyundai Santa Cruz: Engine Control System / Components and Components Location

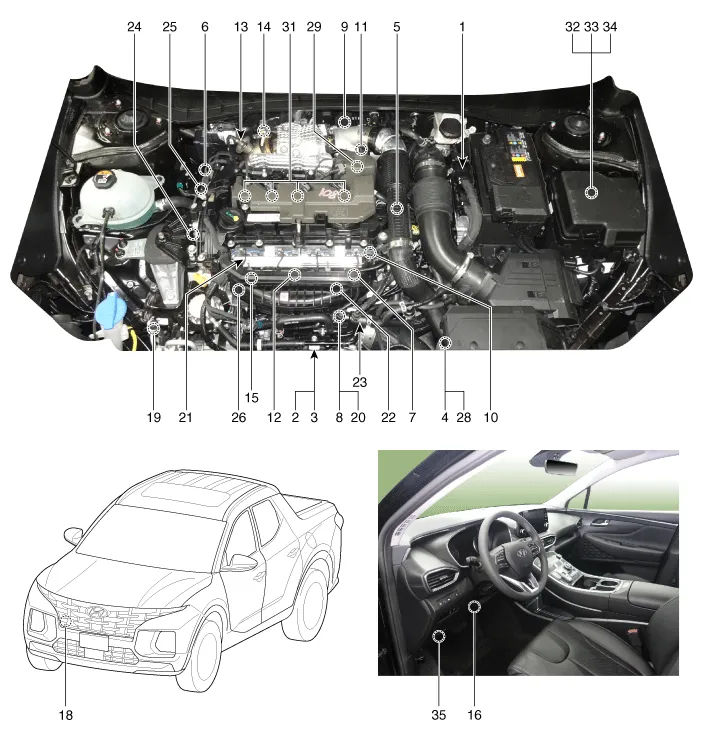

- Components Location

1. ECM (Engine Control Module)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
4. Boost Pressure Sensor (BPS)
5. Engine Coolant Temperature Sensor (ECTS) #1 - Water Temperature Control Assembly Side
6. Engine Coolant Temperature Sensor (ECTS) #2 - Electronic Water Pump (EWP) Side
7. Engine Coolant Temperature Sensor (ECTS) #3 - Cylinder Block Side
8. Throttle Position Sensor (TPS) [integrated into ETC Module]
9. Crankshaft Position Sensor (CKPS)
10. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
11. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
12. Knock Sensor (KS)
13. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
15. Rail Pressure Sensor (RPS)
16. Accelerator Position Sensor (APS)
17. Fuel Tank Pressure Sensor (FTPS)
18. Ambient temperature sensor (ATS)
19. Air Conditioning Pressure Transducer (APT)
20. ETC motor [integrated into ETC Module]
21. MPI Injector
22. GDI Injector
23. Purge Control Solenoid Valve (PCSV)
24. Electric E-CVVT Motot [Bank 1 / Intake]
25. Variable Force Solenoid (VFS) [Bank 1 / Exhaust]
26. Oil Pressure & Temperature Sensors (OPTS)
27. Electronic WGT Control Actuator (EWGA)
28. RCV control solenoid valve
29. Fuel pressure control valve
30. Canister Close Valve (CCV)
31. Ignition Coil
32. Main relay
33. Fuel pump relay
34. E-CVVT relay
35. Data Link Connector (DLC) [16 Pin]

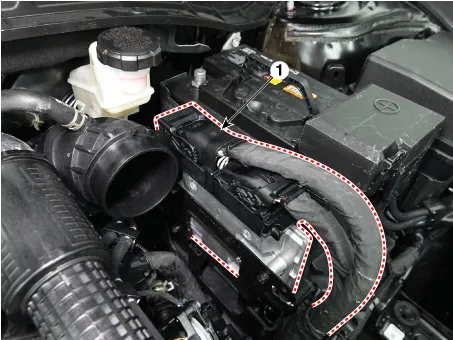

1. ECM (Engine Control Module)2. Manifold Absolute Pressure Sensor (MAPS)

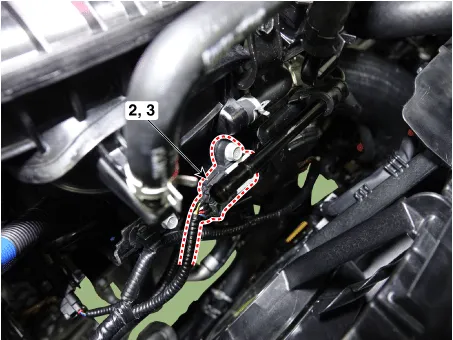

3. Intake Air Temperature Sensor (IATS)

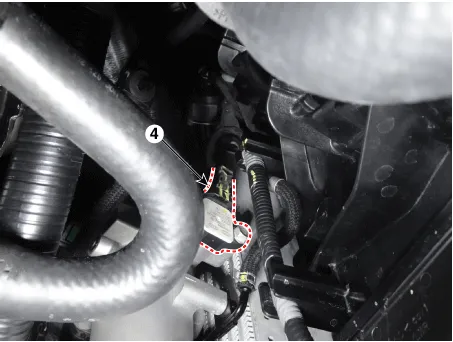

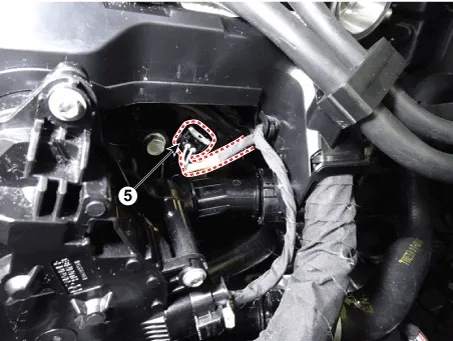

4. Boost Pressure Sensor (BPS)5. Engine Coolant Temperature Sensor (ECTS) #1 - Water Temperature Control Assembly Side

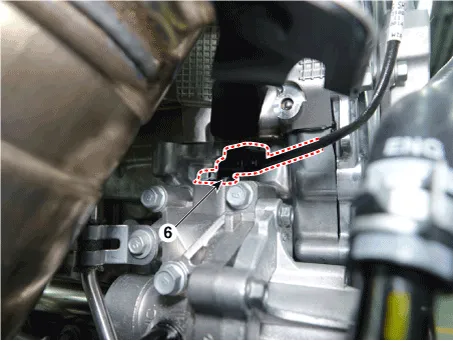

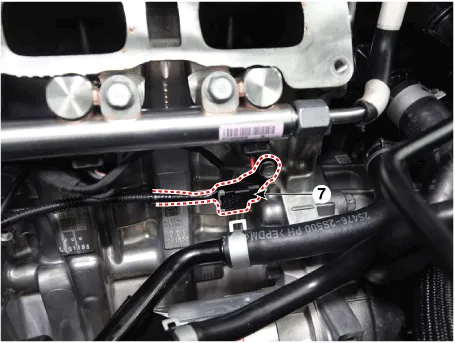

6. Engine Coolant Temperature Sensor (ECTS) #2 - Electronic Water Pump (EWP) Side7. Engine Coolant Temperature Sensor (ECTS) #3 - Cylinder Block Side

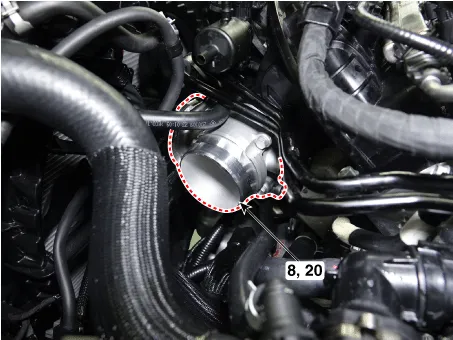

8. Throttle Position Sensor (TPS) [integrated into ETC Module]
20. ETC motor [integrated into ETC Module]

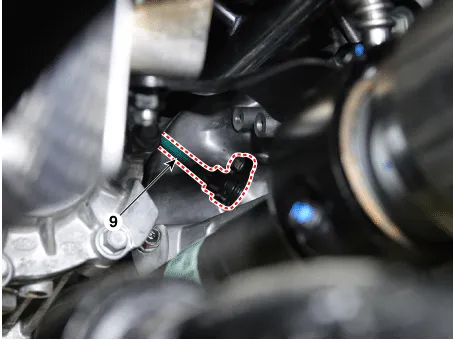

9. Crankshaft Position Sensor (CKPS)

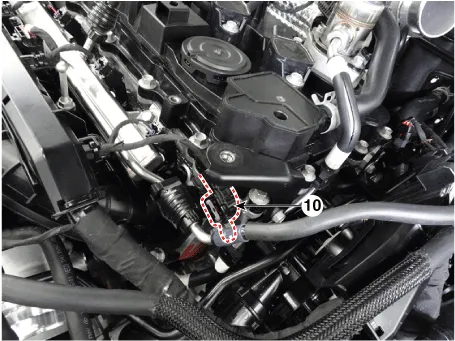

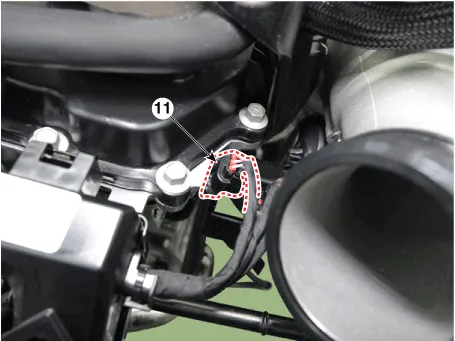

10. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]11. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]

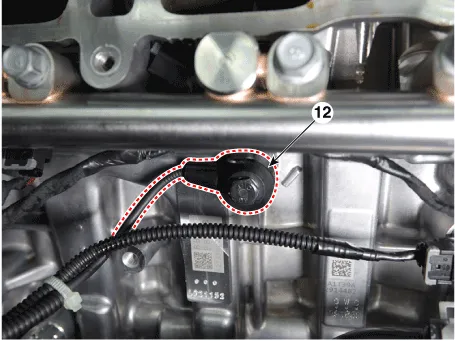

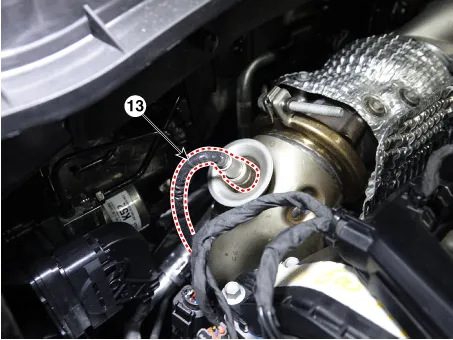

12. Knock Sensor (KS)13. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]

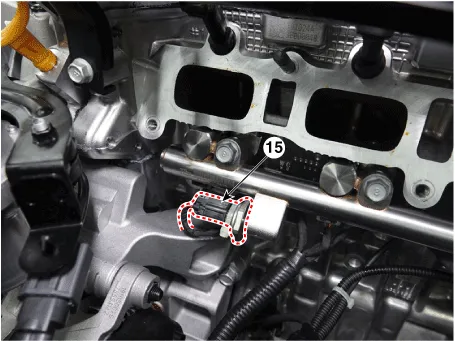

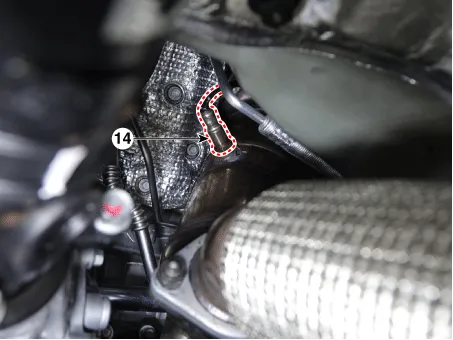

14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]15. Rail Pressure Sensor (RPS)

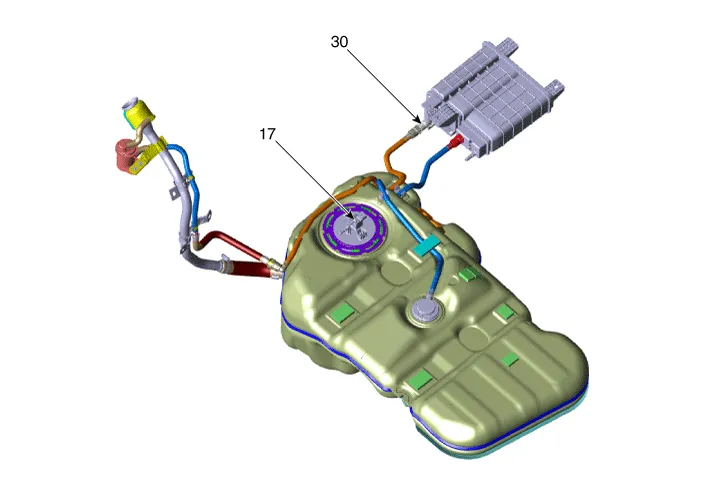

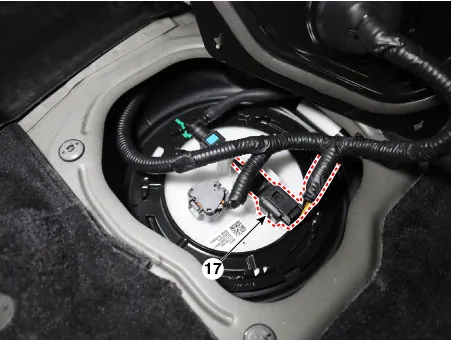

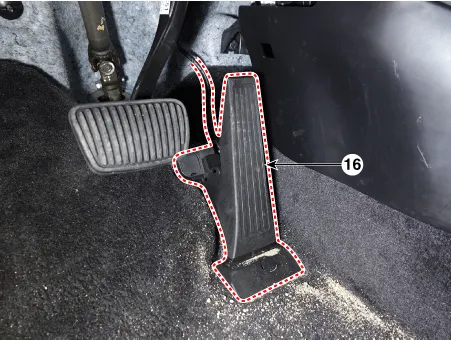

16. Accelerator Position Sensor (APS)17. Fuel Tank Pressure Sensor (FTPS)

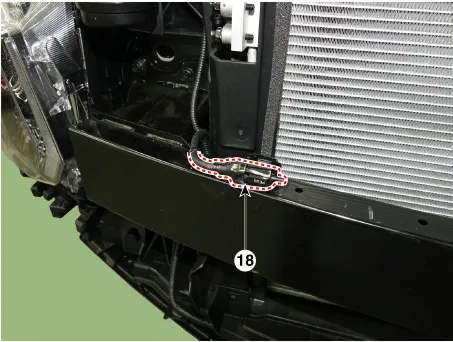

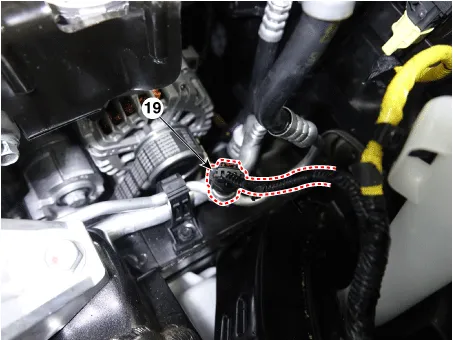

18. Ambient temperature sensor (ATS)19. Air Conditioning Pressure Transducer (APT)

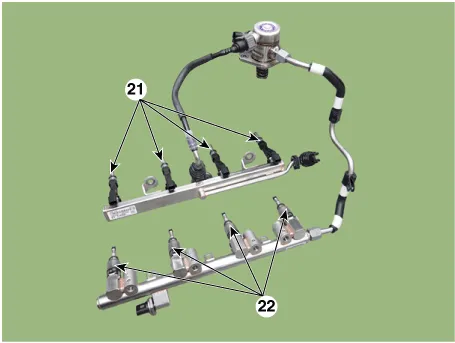

21. MPI Injector
22. GDI Injector

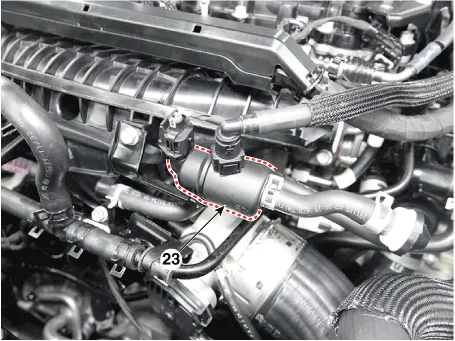

23. Purge Control Solenoid Valve (PCSV)

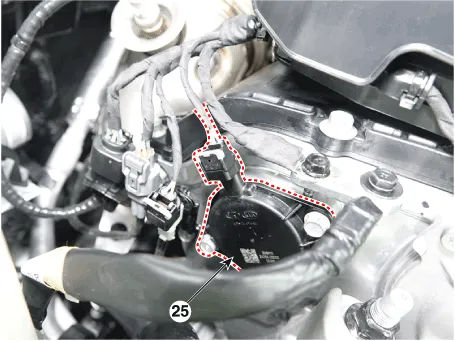

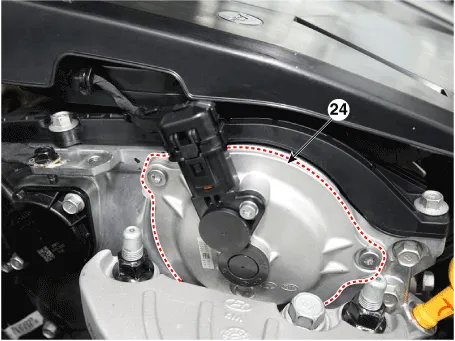

24. Electric E-CVVT Motot [Bank 1 / Intake]25. Variable Force Solenoid (VFS) [Bank 1 / Exhaust]

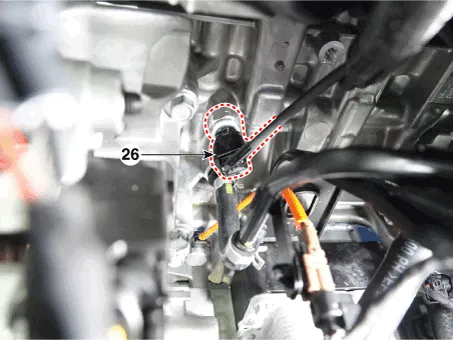

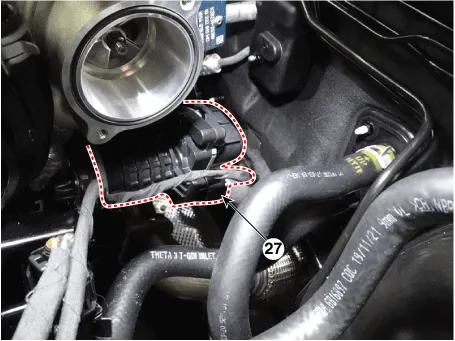

26. Oil Pressure & Temperature Sensors (OPTS)27. Electronic WGT Control Actuator (EWGA)

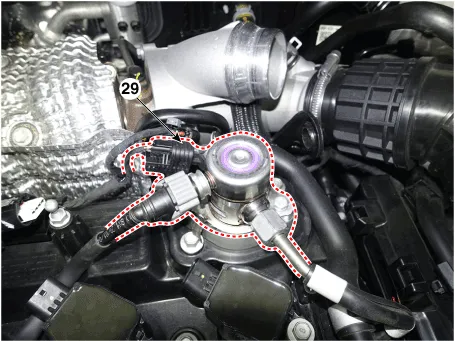

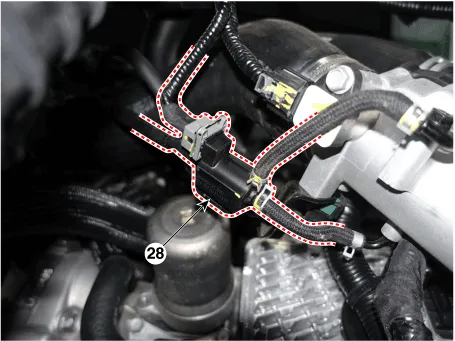

28. RCV control solenoid valve29. Fuel pressure control valve

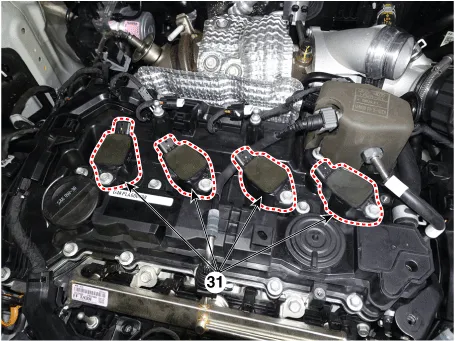

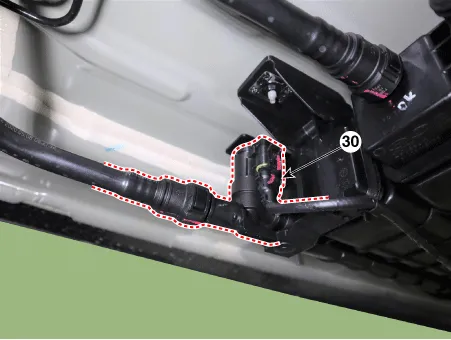

30. Canister Close Valve (CCV)31. Ignition Coil

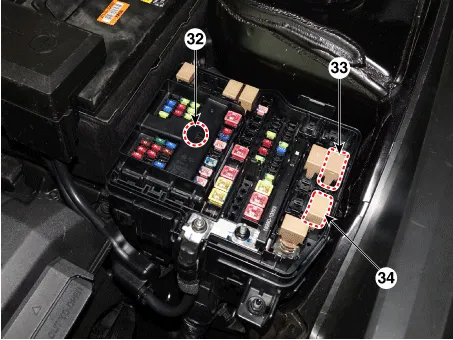

32. Main relay
33. Fuel pump relay
34. E-CVVT relay

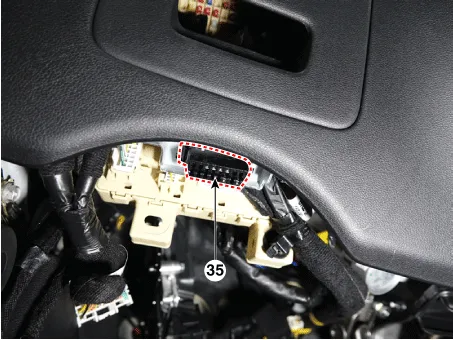

35. Data Link Connector (DLC) [16 Pin]
