Hyundai Santa Cruz: Lighting System / Components and Components Location

- Component Location

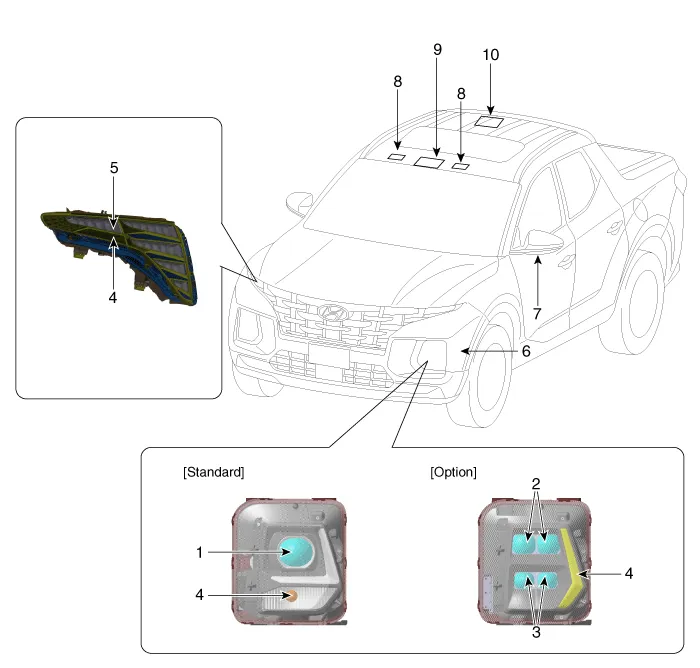

1. Head lamp (Low & High)
2. Head lamp (Low)
3. Head lamp (High)
4. Turn signal lamp
5. Daytime running light (DRL) & Positioning lamp
6. Side mark lamp
7. Side repeater lamp
8. Vanity lamp
9. Overhead console lamp
10. Room lamp

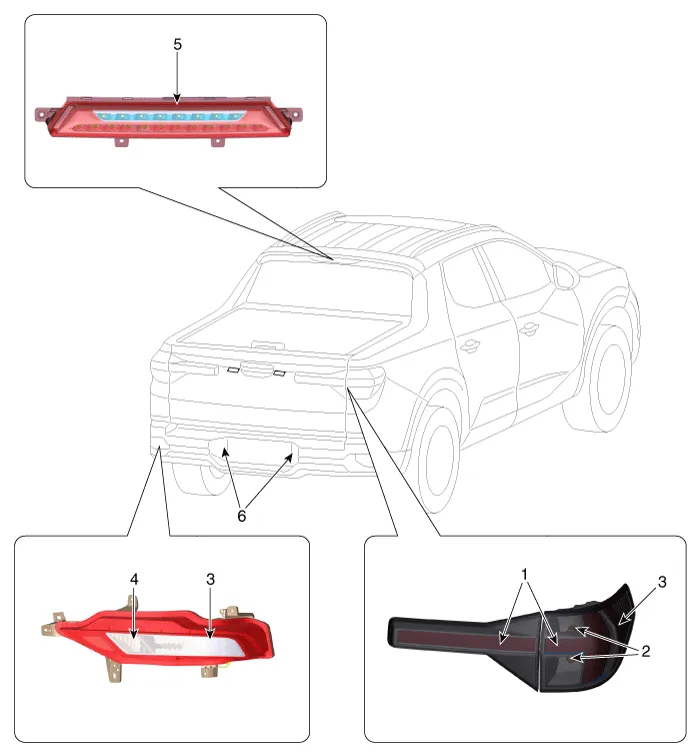

1. Tail lamp
2. Stop & Turn signal lamp
3. Side marker lamp
4. Back up lamp
5. High mounted stop lamp
6. License plate lamp
7. Top mounted bed lamp (TMBL)
8. Side mounted bed lamp (SMBL)


    Lighting System
    ...

    Troubleshooting
    - Troubleshooting SymptomPossible causeRemedy One lamp does not light(all exterior)Bulb burned outReplace bulb Socket, wiring or ground faultyRepair if necessary Head lamps do not lightBulb burn ...
