Hyundai Santa Cruz: Engine And Transaxle Assembly / Engine Room Under Cover

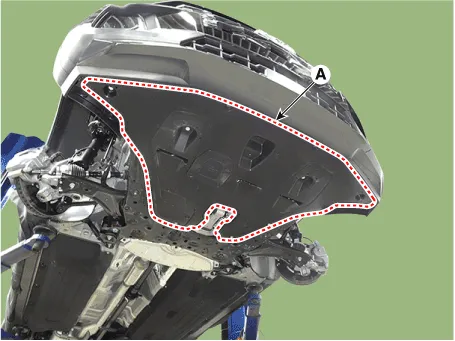

1.Remove the engine room under cover (A).
Tightening torque :7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
2.Install in the reverse order of removal.
Engine Cover
- Removal and Installation
1.Remove the engine cover (A).
• To avoid damage, remove the engine cover on room temperature.
• Do not disengage both front and rear mounti ...
Engine Mounting
- Components
1. Engine mounting support bracket2. Engine mounting bracket3. Transaxle mounting bracket4. Roll rod bracket
- Removal and Installation
Roll rod Bracket
1.Remove the engine ...
