Hyundai Santa Cruz: Front Seat / Front Seat Shield Inner Cover

- Component Location

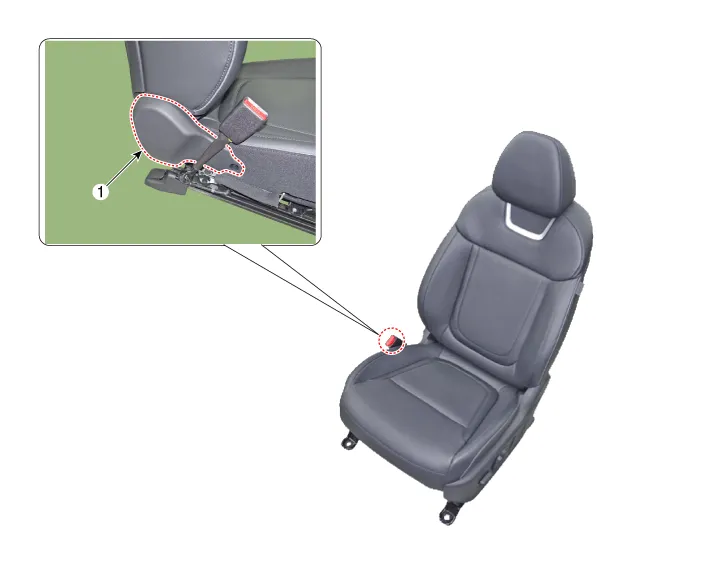

1. Front seat shield inner cover

- Replacement

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

1.Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")

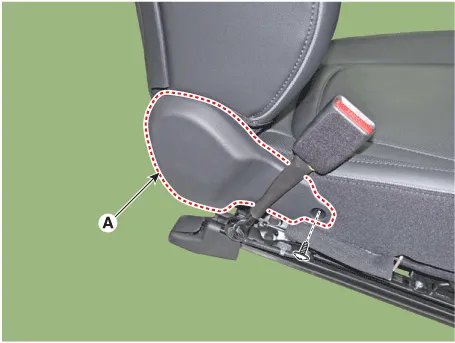

2.Loosen the mounting screw, remove the front seat shield inner cover (A).

3.To install, reverse removal procedure.

• Replace any damaged clips (or pin-type retainers).
