Hyundai Santa Cruz: Audio/AVNT System / Mic

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the overhead console.(Refer to Lighting System - "Overhead Console Lamp")

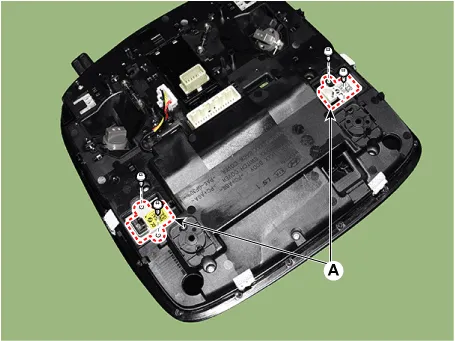

3.Loosen the mounting screws and remove the MIC (A).

- Installation

1.To install, reverse removal procedure.



• Make sure the connector are connected in properly.

• Replace any damaged clips.

    Front Monitor
    - Removal 1.Disconnct the negative (-) battery terminal. 2.Remove the front monitor lower cover (A). 3.Remove the front monitor lower cover after disconnecting the mood lamp connector (A). ...

    Steering Wheel Remote Controller (SWRC)
    - Circuit Diagram Audio+Bluetooth+Voice+TRIP+SCC+MSLA+LFA Audio+Bluetooth+Voice+TRIP+SCC+MSLA+LFA+Paddle Shift Audio+Bluetooth Audio+Bluetooth+Voice Trip+CC+MSLA+LFA Trip+SCC+MS ...
