Hyundai Santa Cruz: Manual Heating and Air Conditioning / Mode selection (12)
.jpg)

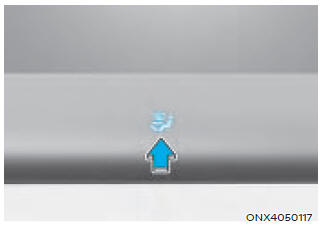

The mode selection button controls the direction of the air flow through the ventilation system.
.jpg)

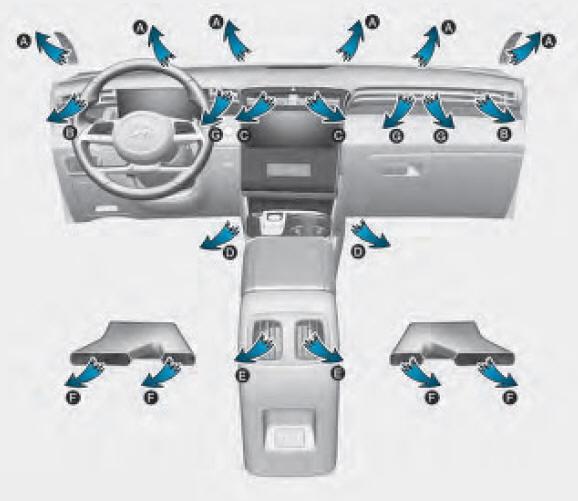

The air flow outlet direction is cycled as follows:
.gif)
.gif)
Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.
.gif)
Air flow is directed towards the face and the floor.
.gif)
Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield and side window defrosters.
.jpg)
Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters.
.jpg)
Most of the air flow is directed to the windshield with a small amount of air directed to the side window defrosters.
.jpg)
Gentle breezes come out the outlet vents.
.jpg)
Instrument panel vents

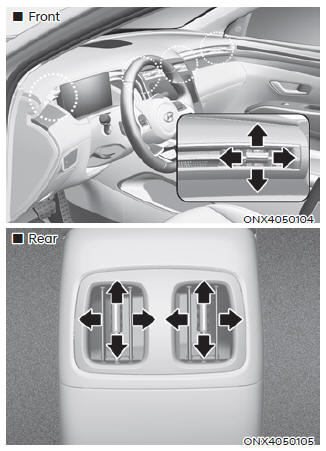

The instrument panel vent air flow can be directed up/down or left/right using the vent adjustment lever. The air flow can also be CLOSED using the vent adjustment lever.
Manual Heating and Air
Conditioning
1. Start the engine.
2. Set the mode to the desired position.
For improving the effectiveness of
heating and cooling, select:
- Heating:
- Cooling:
3. Set the temperature control to the
desired p ...
Temperature control
The temperature setting will increase
when you toggle up or touch the UP
arrow on the touchscreen (if equipped).
The temperature setting will decrease
when you toggle down or touch the
DOWN arrow ...
