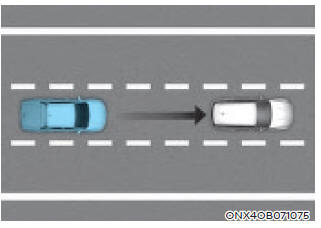

Highway Driving Assist combines the features of Smart Cruise Control along with the features of Lane Following Assist and the navigation-based information related to highway speed limits to help keep your vehicle centered in the lane and to also maintain the highway speed limit.
Information
Highway Driving Assist is useful on long drives and may help to reduce driver fatigue.
Information

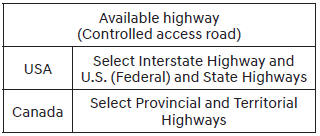

• Highway Driving Assist is available only on controlled access road of certain highways.
Controlled access road indicates roads with limited entrances and exits that allow uninterrupted high speed traffic flow. Only passenger cars and motorcycles are allowed on controlled access roads.
• Additional highways may be expanded by future navigation updates.
Information
Highway Driving Assist operates on main roads of highways, and does not operate on interchanges or junctions.

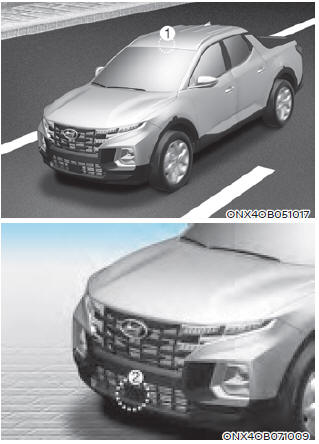

Detecting sensor
[1] : Front view camera, [2] : Front radar
Refer to the picture above for the detailed location of the detecting sensors.
CAUTION
For more details on the precautions of the detecting sensors, refer to “Forward Collision-Avoidance Assist (FCA)” section in chapter 7.
